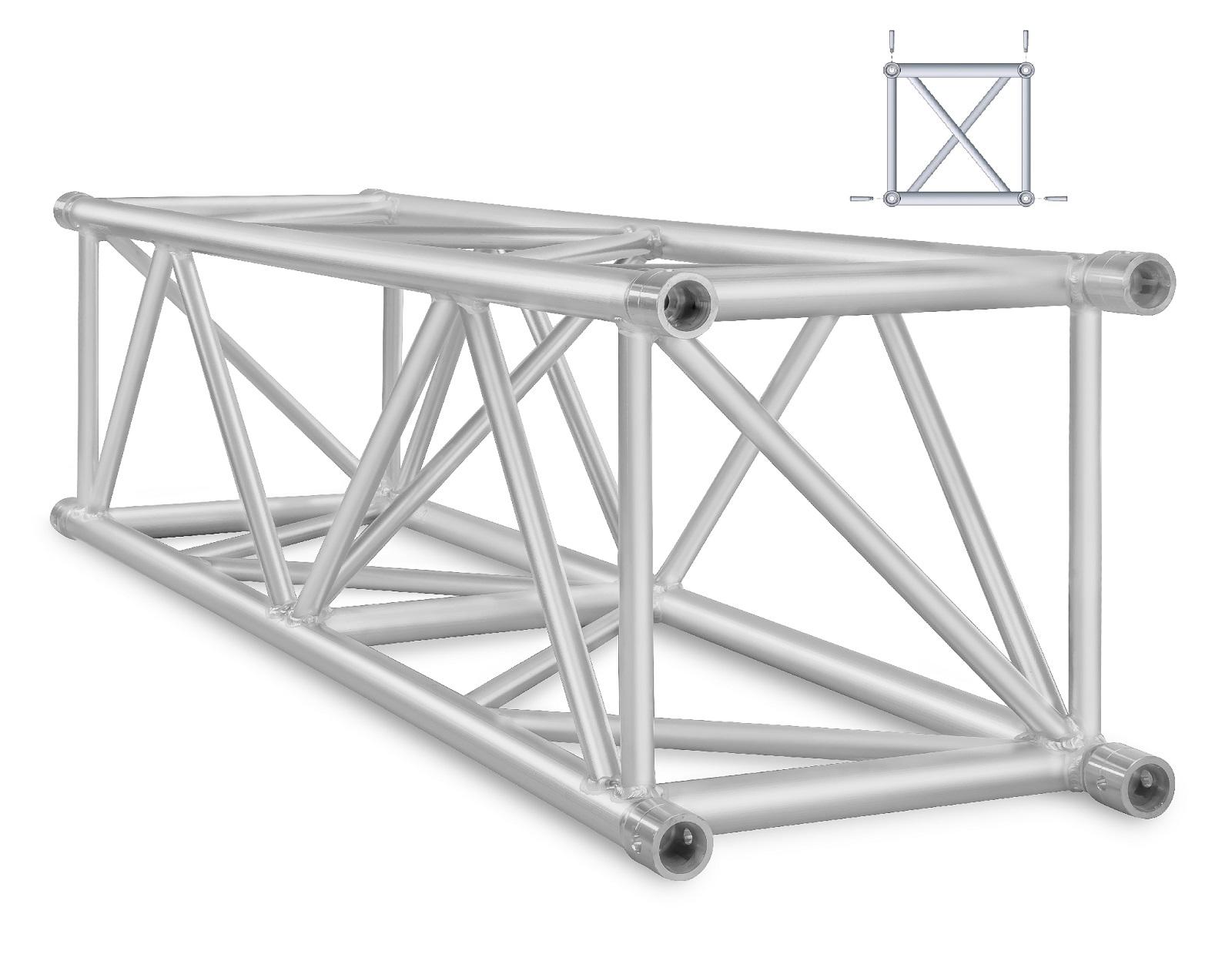

M520 - High Capacity truss range including compact folding option

Available colors:
Code
QTP
Main Tube
50 x 4 mm
Braces
30 x 3 mm
Available Length
0,5 - 4 m
Size
529 x 529 mm
Span
30 m
M520 - High Capacity truss range including compact folding option
M520 - High Capacity truss range including compact folding option

Detailed information

Description

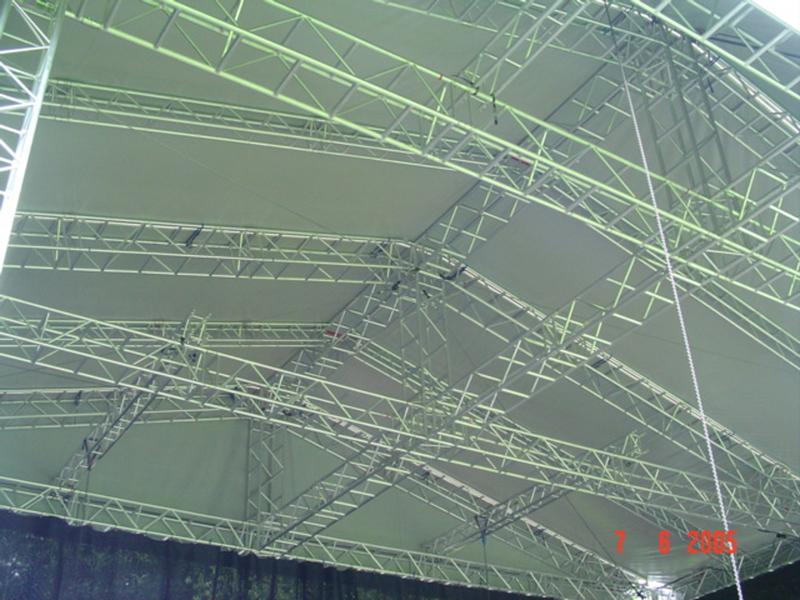

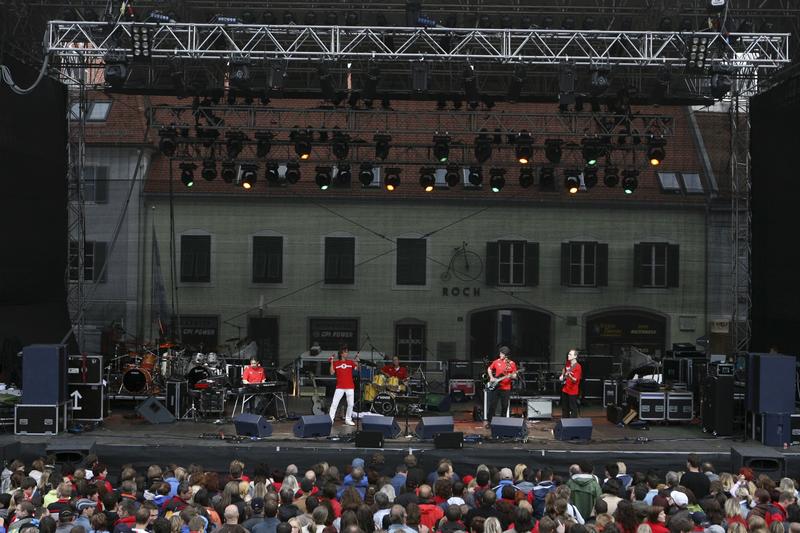

M520 is a high-capacity truss system which adapts to its users' needs. All events which require an outdoor stage, concert stage or podium will be well-served by the M520. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • High-capacity M520 Series truss range

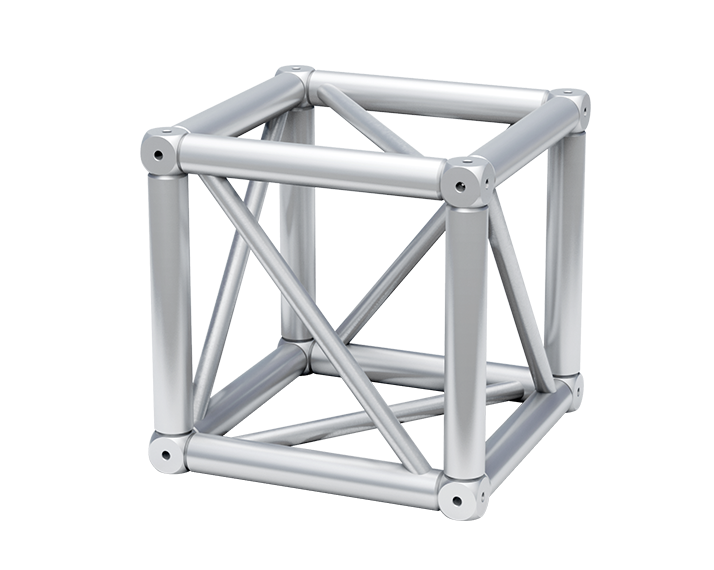

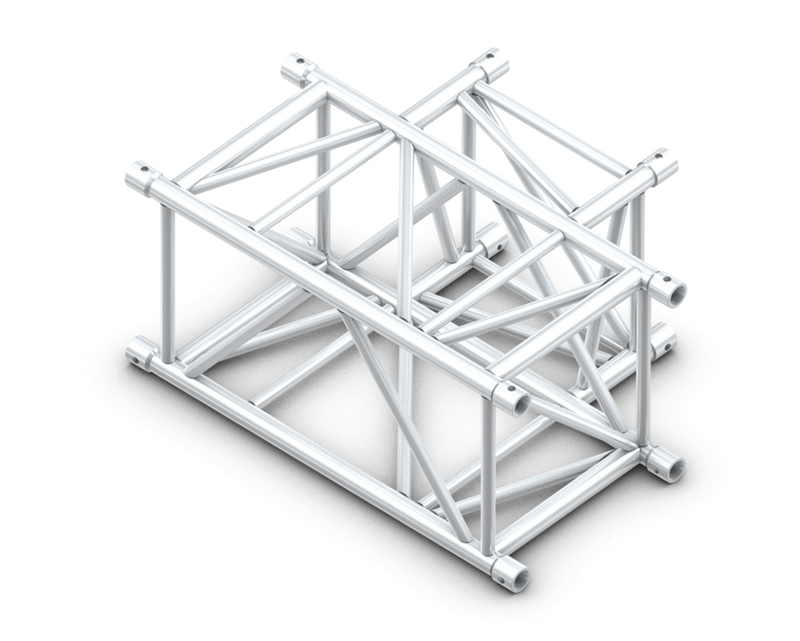

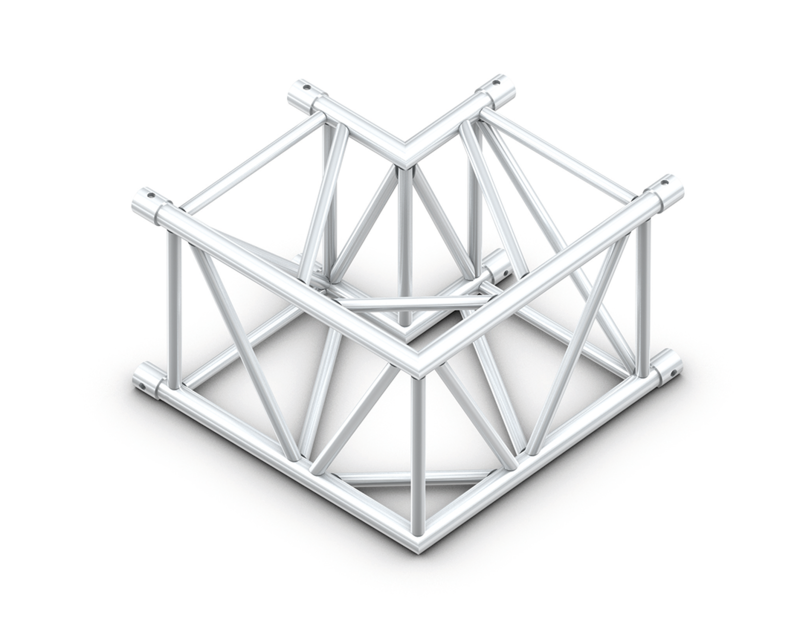

  • Connection kit supplied with every truss length & junction

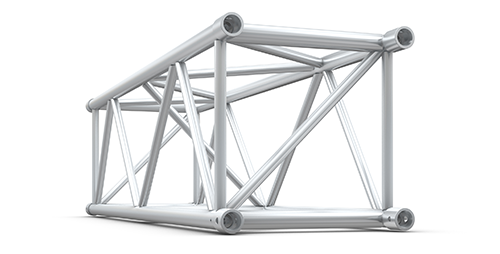

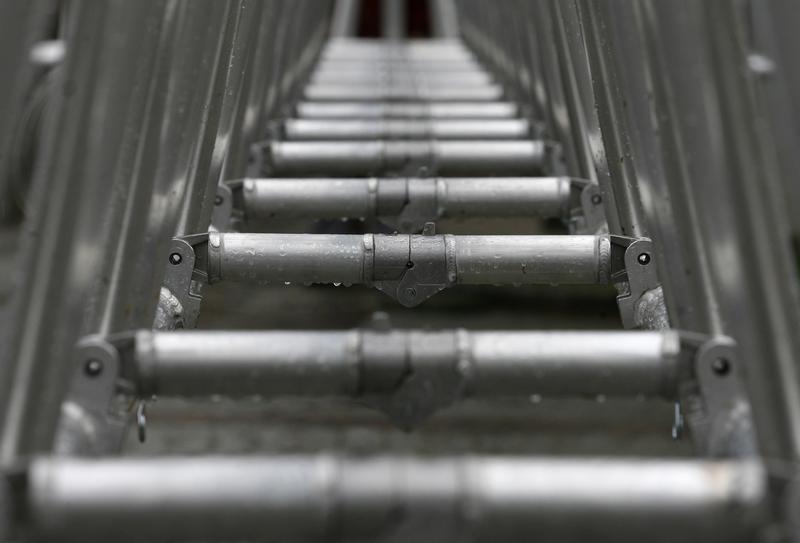

  • Square or compact folding formats available
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Super-size conical connection for maximum rigidity
  • Powder coat colour finish available on request
  • User-friendly tapered pin hole orientation for ease of assembly
  • Great free-span & loading characteristics (up to 24m / 78.74 ft)
M520 - Standard lengths and weights available
  1 m 1.2 m 1.5 m 1.6 m 2 m 2.4 m 2.5 m 3 m 3.5 m 4 m
Fold 13.00 kg 14.40 kg 15.40 kg 19.93 kg 23.20 kg 28.50 kg 29.20 kg 32.00 kg 34.20 kg 41.90 kg
Quatro 17.00 kg 18.50 kg 22.50 kg 22.60 kg 27.60 kg 31.60 kg 33.00 kg 38.30 kg 44.00 kg 49.00 kg
