MILOS. Flexibility Behind Your Show.

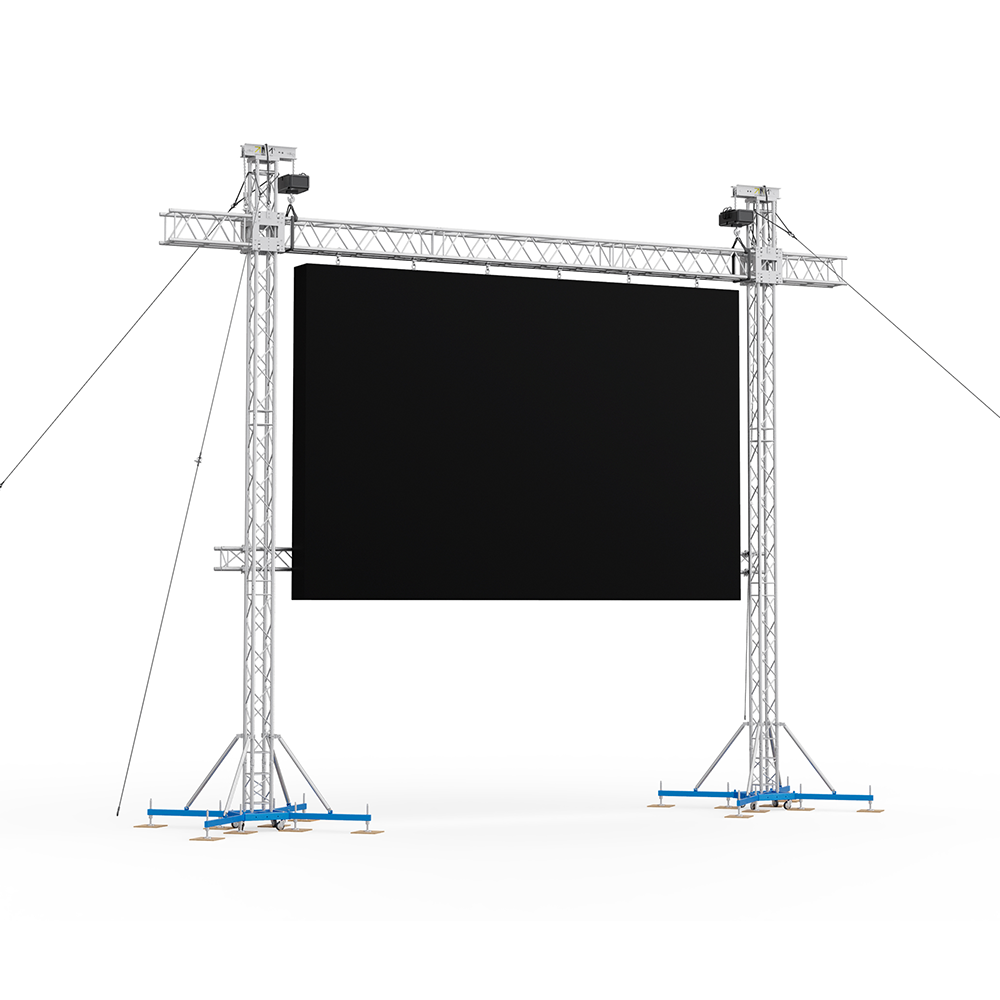

Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.

Code: LSG1-MT1-QTL-6,5x7,5m, LSG1-MT1-QTL-7,5x7,5m

Self Weight: 850 kg

Available colors:

LSG1 LED Screen structures

LSG1 LED Screen structures

Detailed information

Key benefits

MT Tower LED Screen Support solution
Wide range of system options available to suit specific screen size & weight
Self-climbing towers (MT1) with electric or manual hoists
EXE hoists recommended
Fast connection for quick, simple and secure assembly
Guy wire connection points for additional stabilisation
Cheapest LSG concept available
Powder coat colour finish available on request

Contact Us

UK

+44 (0)1945 410700

USA

+1 800 411 0065

DE

+49 251 2024014-0

EU

+420 416 810 800

Asia

Get your quote

Technical specification
Dimensions		LED screen size	6,5x7,5 m	21,32x24,60 ft	7,5x7,5 m	24,60x24,60 ft
	A	Internal width	6,66 m	21,85 ft	7,65 m	25,09 ft
	B	External width	8,99 m	29,49 ft	9,99 m	32,78 ft
	C	Width set-up area incl. guy wires	19,75 m	64.80 ft	19,75 m	64,80 ft
	D	Depth set-up area incl. guy wires	16,10 m	52.82 ft	16,10 m	52,82 ft
	E	Clearance	7,00 m	22,96 ft	7,00 m	22,96 ft
	F	Overall height	8,05 m	26,41 ft	8,05 m	26,41 ft

Loading capacity
Loading capacity		LED screen size	6,5x7,5 m	21,32x24,60 ft	7,5x7,5 m	24,60x24,60 ft
	LED Screen	4x point loads	625 Kg	1377 lbs	625 Kg	1377 lbs
		Max. total load	2500 Kg	5511 lbs	2500 Kg	5511 lbs
	* See structural report for exact load positioning

Operational specifications
Design standarts	DIN EN 13814 (2005) DIN 1055-4 DIN 4113 DIN 18800	Fairground and amusement park machinery and structures Actions on structures / wind Design of aluminium structures Design of steel structures
Design standarts	• All our structurers are standard produced under EN 1090 EXC2, include necessary guy wires, instruction manual and engineering report
Wind management	Max. wind speed incl. screen	28m/s - 100km/h - 62mph (Max. basic wind speed)
Wind management	* Screen to be stabilised against swinging by cross truss at bottom of screen
Ballast	4x 2160kg / 4757lbs at each end of the outriggger * Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized	Customisation, i.e. truss configuration, alternative dimensions, on requirement. Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration

Transportation data
Self-weight	LED screen size	6,5x7,5 m	21,32x24,60 ft	7,5x7,5 m	24,60x24,60 ft
Self-weight	* Exact self-weight depends on configuration	850 kg	1874 lbs	850 kg	1874 lbs
Transport volume	* Packed in carton boxes and bubble foil	8 m3	282 ft3	8 m3	282ft3
